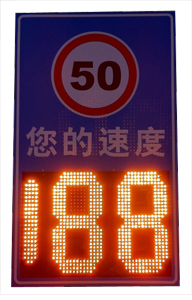

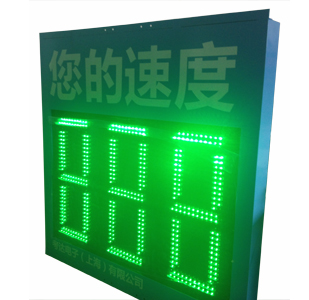

Radar Speed Warning Device

Product specifications:

1. Display: up to seven characters
2. Power supply: 90 to 240 V
3. Operating specifications:
   • Operating voltage: 12 V
   • Operating current: < 1.5 A
4. Maximum detection speed: 255 km/h
5. Targeting: 2-4 lanes

Radar technical parameters:

1. Supply voltage: 12 VDC
2. Supply current: 1 A
3. Reverse polarity protection: in-line diode protection
4. Operating temperature: -40 °C to 70 °C
5. Operating humidity: +95% (non-condensing)
6. Velocimetry precision: ± 0.1 km/h
7. Antenna type: conical antenna
8. Lens type: precision-ground reflection lens
9. Polarity: positive cycle
10. Beam width: 12 degrees
11. Radar frequency: K-band (24G)
12. Detection range: ≤ 10 to 500 m
13. Response time: ≤ 10 ms
14. Energy leakage: ≤ 3 μw/cm²
15. Output power: 15 mW

Other features:

1. Wirelessly adjustable speed limit
2. Wirelessly adjustable flashing LED
3. Wirelessly adjustable maximum display speed
4. Speed clearly visible from up to 200 m away
5. Display brightness uses ambient lighting
6. Flashing LEDS when speeding is detected
7. Rain and dust screening to meet IP65 specifications
8. Automated traffic counting
9. Wirelessly adjustable speed/time display
