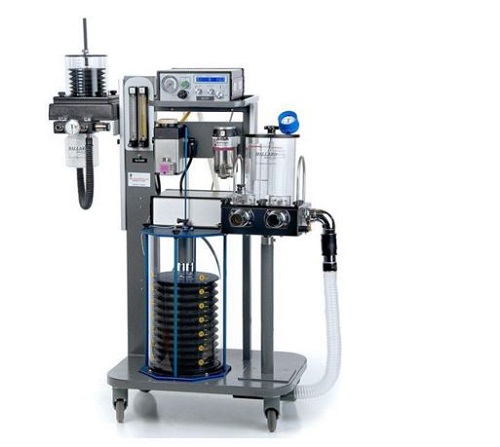

Anesthesia and Ventilators for Large & Small Animals

Anesthesia and Ventilators for Large & Small Animals

STANDARD SPECIFICATIONS:

1. CLASSIFICATION:A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator
2. VOLUME:60 Liter Bellows for Large Animals with Large Animal Absorber Circuit
3. Effective distance: > 800 m
4. VOLUME:
   • 60 Liter Bellows for Large Animals with Large Animal Absorber Circuit
   • 2800C-P Option: 2.2 Liter Bellows for Small Animals with Small Animal Absorber Circuit
5. CONTROLS:
   • Inspiratory Time:1 - 3 seconds
   • Inspiratory Flow:10 - 650 LPM
   • Inspiratory Pressure:10 - 70cm H2O
   • Rate:2 - 80 BPM
   • Pneumatic Manual Push
   • Button for Inspiration:YES
   • Inspiratory Flow:10 - 650 LPM
   • Inspiratory Flow:10 - 650 LPM
   • Inspiratory Flow:10 - 650 LPM
6. LED DISPLAY:
   • Inspiratory Time
   • Rate (BPM)
   • I:E Ratio
7. ALARMS AND ALERTS:
   • Failure to Cycle:Visual-Audible
   • Low Gas Pressure Failure:Visual-Audible
   • Power Failure:Visual-Audible
8. SAFETY SYSTEM:
   • Overpressure Governor 80cm H2O (adjustable)
9. GAS SCAVENGER:
   • 19mm port
10. ABSORBER VOLUME:
    • 6 Liter, Quick Change for Large Animals
11. FOR SODA LIME:
    • 2800C-P Option: 2 Liter, Quick Change for Small Animals
12. SIZE & WEIGHT:
    • 2800C: 37” (94cm) Width x 28” (71 cm) Depth x 57” (145cm) Height. Weight 130 lbs. (59 kg)
    • 2800C-P: 48” (122cm) Width x 28” (71 cm) Depth x 57” (145cm) Height. Weight 150 lbs. (68 kg)
    • Note: Depth and Width Sizes above account for outboard hoses and fittings. The footprint of the base of the cart is 30” (76cm) Width x 24” (61cm) Depth

OPTIONS:

1. Medical Air Option: (Optional 0-10 L/M Air Flow Meter and plumbing to mix medical air with default oxygen anesthesia gas.)
2. Optional Vaporizers and Mounts
