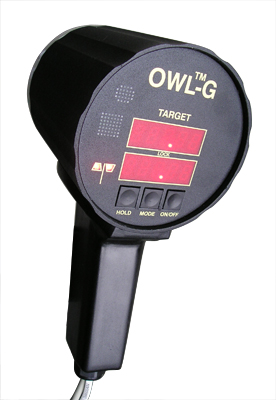

OWL-G™ High Accuracy Slow-Target Speed Radar

The OWL-G™ High Accuracy Slow-Target Speed Radar can accurately evaluate the performance of speed detection systems such as: video speed detection systems, inductive coil speed detection systems, radar speed detection systems, and laser speed detection systems. It can fully meet the requirement of on-site measurements for high accuracy.

Technical parameters:

1. Speed range: 1.00 to 40.00 km/h
2. Accuracy: ± 0.01 km/h
3. Shooting range:
   • ≥ 400 m for small vehicles
   • ≥ 600 m for large vehicles
4. Operating voltage:
   • +12 VDC nominal
   • +10.5 V minimum
   • +16 V maximum
5. Operating current: ≤ 1A when operating voltage is +12 VDC
6. Microwave transmission frequency: K-band 24050 MHz to 24250 MHz
7. Microwave transmission power P.: ≤ 30 mW
8. Radar beam width: ± 9 degrees at 3 dB point
9. Polarization mode: right circular polarization
10. Rated burning power of receiver diode: 100 mW

Mechanical parameters:

1. Shape: Cylindrical
2. Size: 80mm × 90mm

Environmental parameters:

1. Operating temperature: -40 °C to +60 °C
2. Storage temperature: -40 °C to +70 °C
3. Relative humidity: no greater than 90% at +60 °C
