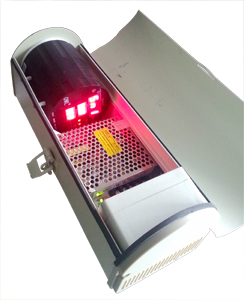

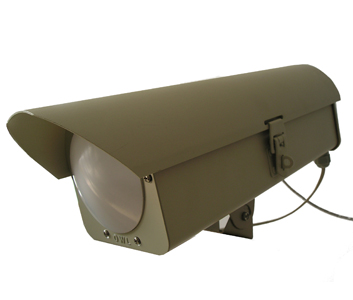

OWL™ Fixed Mounted Single-Lane Capture Radar

The YEMA Electronics™ OWL™ Fixed Mounted Single-Lane Capture Radar is designed for use in situations where a stationary target must monitor one lane exclusively.

The OWL™ brand radar innovatively updates existing designs by utilizing an extremely narrow, concentrated beam which effectively targets a single lane and avoids interference from other lanes. The resulting reflections are extremely powerful and help ensure a fast, clear signal.

System performance specifications:

1. Operating voltage:
   • Nominal value of +12 VDC
   • Minimum of +10.5 V
   • Maximum of +16 V
2. Working current: < 0.5 A
3. Microwave transmission frequencies: K-band 24 GHz
4. Microwave emission power P.: ≤ 10 mW
5. Width of radar beam: in 3 dB point, ± 3 degrees
6. Polarization: right-handed Park polarization
7. Rated burning power of receiver diode: 100 mW

Mechanical parameters:

1. Cylindrical shell:
   • Size: φ90mm × 110mm
   • Weight: 0.9 kg
2. Planar case:
   • Size: 250mm × 250mm × 80mm
   • Weight: 0.6 kg

Environmental parameters:

1. Operating temperature: -40 °C to +70 °C
2. Storage temperature: -40 °C to +75 °C
3. Humidity: no greater than 90% at +60 °C
4. Tachometer accuracy: ± 1 km/h
5. Speed range: 10 to 250 km/h
6. Velocimetry interval: less than 20 milliseconds
7. Response time: less than 20 milliseconds
